Cell Type: LFP280Ah PACK: 46.592kWh/1P52S Battery System: 232.96kWh/1P260S Voltage Range: 728~936Vdc PACK Ingress Rating: IP65 Rated Power: 100kW Max. Power: 110kW THDi; <3% DC Ratio: <0.5%lp Nominal Voltage: 400Vac/3P+N+PE Nominal Frequency: 50/60Hz System E fficiency : ≥90% Charge/Discharge Rate: 0.5P DoD : 95% SOC Accuracy: <3% Cycle Life: ≥8,000 times Switching Time: <100ms Connectivity: Ethernet /RS485 Ingress Rating: IP55 Cooling: Active liquid cooling Operating Tempera
Product Description
| DC Battery Parameters | |
| Battery Cell Type | LFP 3.2V/280Ah |

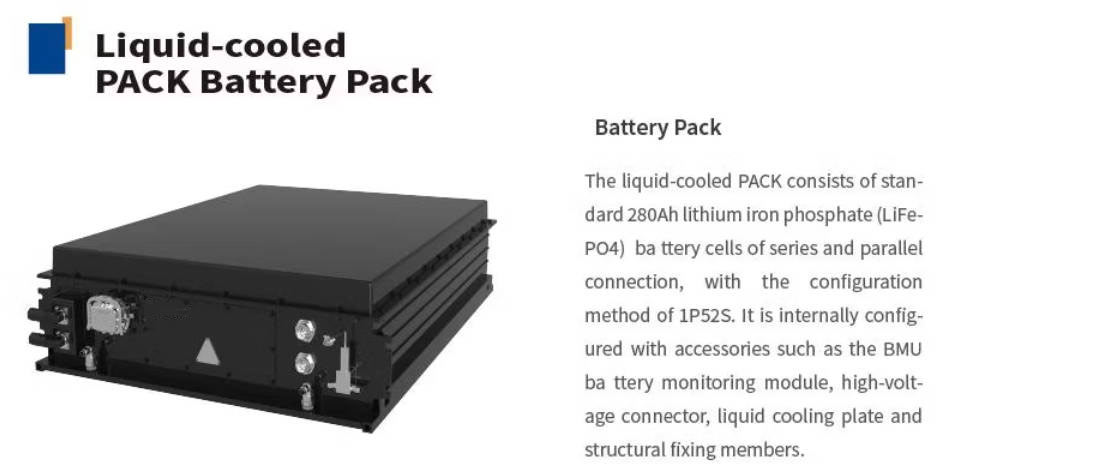

| Battery Pack Configuration | 46.59kWh/1P52S |
| Battery System Configuration | 232kWh/1P260S |
| Battery Voltage Range | 728~936V DC |

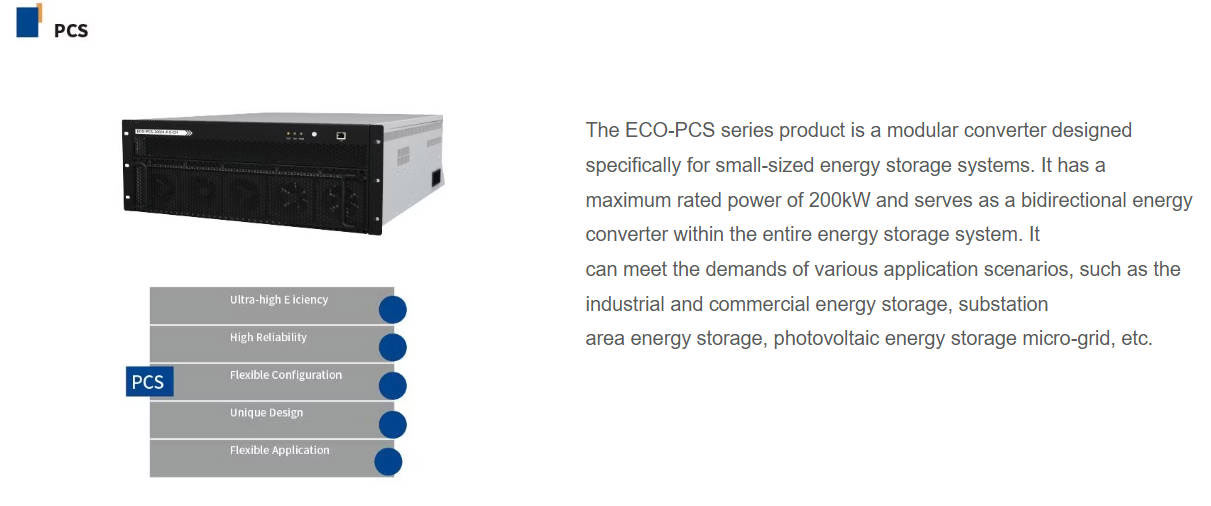

| AC Side Parameters | |
| AC Rated Power | 116kW |
| AC Maximum Power | 128kW (continuous for 1min) |
| AC Current Distortion Rate | <3% |
| DC Component | <0.5%Ipn |
| Grid Rated Voltage | 400V AC |
| Adjustable Power Factor Range | -1~1 |
| Rated Grid Frequency | 50Hz |
| System Parameters | |
| Energy Conversion Efficiency | ≥91% |
| Charge/Discharge Rate | ≤0.5P |
| Discharge Depth | 95%DOD |
| Number of Cycles | ≥8,000 times |
| Charge/Discharge Switching Time | <100ms |
| Communication Interface | Ethernet /RS485 |
| Protection Level | IP55 |
| Cooling Method | Liquid Cooling |
| Operating Temperature | -25~55ºC |
| Relative Humidity | 0-95%RH, non-condensing |
| Noise | <75dB |
| Altitude | ≤2,000m (derating for usage above 2,000m) |
| Fire Suppression System | Combustible gas detection/smoke detection/temperature detection + active warning + module-level fire suppression (perfluorohexanone) |
| Dimensions (Width*Depth*Height) | 1,100*1,300*2,350 (mm) |
| Weight | 2,800kg |

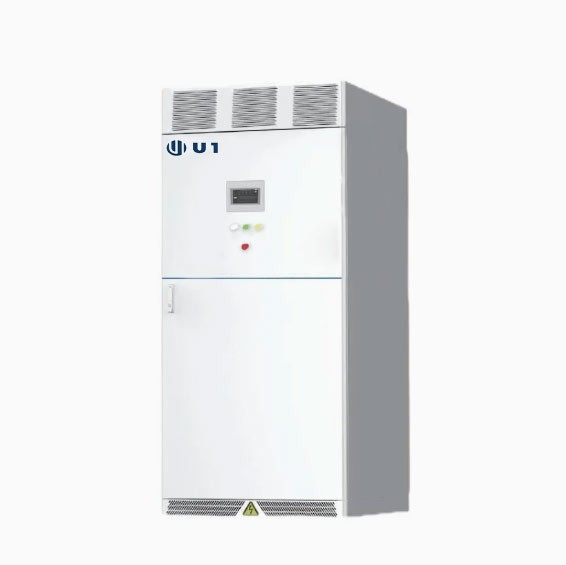

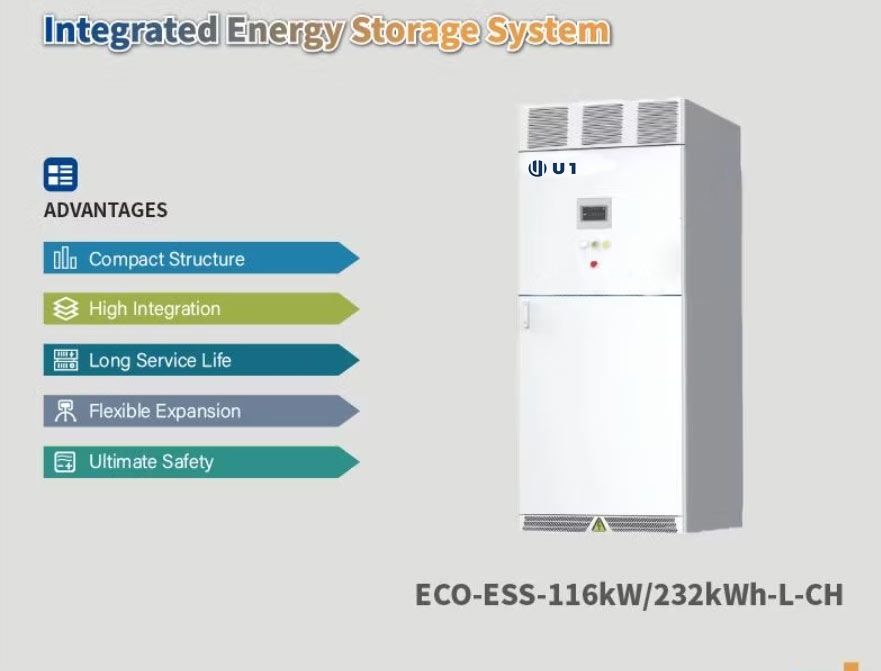

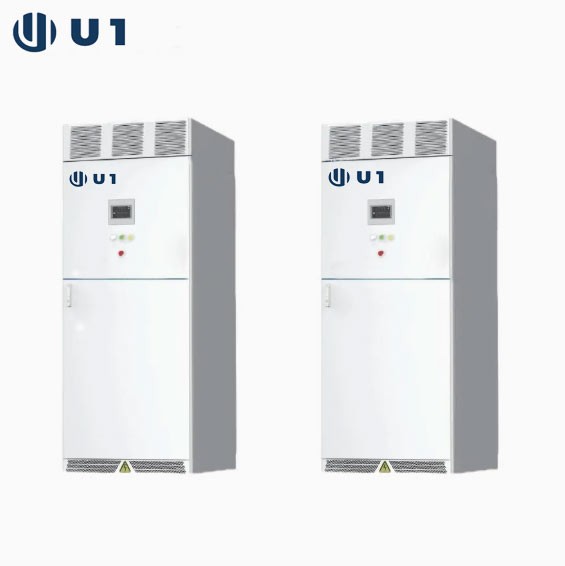

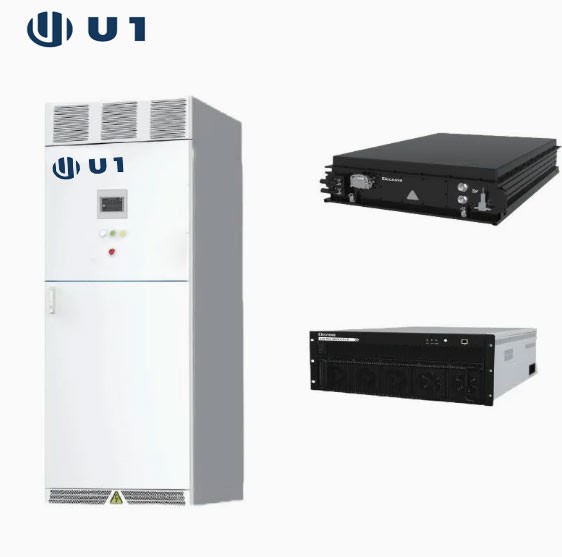

Detailed Photos
Q: Are you trading company or manufacturer ?
A: We are factory in China
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 1 month for the items were in stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
Q: What is your advantages?
A:Firstly, our system conversion rate actual operation more than 87%. Besides, our self-developed EMS, which can be customised and developed according to the energy management strategy required by the customer; Finally, we use modular design, good expandability, with the customer's needs, can be quickly connected to the machine
