Battery Voltage: 40v-58.4V Storage Capacity: 10240Wh Weight: 116.1KGS External Dimmension: 651.5*445*235mm Warranty: 5Years Battery Capacity: 206Ah Battery Cycle Life: 6000 times Modular Structure： 1P16S
| Model | WM512200 |
| Battery Volt age | 40v-58.4V |
| Storage Capacity | 10240Wh |
| Weight | 116.1KGS |
| Color | White |
| External Dimmension | 651.5*445*235mm |
| Warranty | 5Years |
| BATTERY MODULE PARAMETERS | |
| Type of Battery | LFE |
| Capacity | 206Ah |
| Battery Cycle Life | 6000 |
| Modular Structure | 1P16S |
| OVERALL CHARACTERISTIC | |
| Capacity for assembled cell discharging by 0.2C | >200Ah |
| Stamdard Charge Condition | Charge with 0.5C constant current and 58.4V constant voltage, charge to 58.4V continute charging till current decline <0.01C |
| Maximum Charge Current | 200A |
| Maximum Discharge Current | |
| Cycle Life | ≤80mΩ Assemblage Impedance |
| Recommend Charging Temperature | ≥6000@25ºC,80%EOL |
| Recommend Discharging Temperature | 0ºC~50ºC |
| Storage Temperature | -15ºC~50ºC |
| Humildity | 0-90% |
| Maximum Altitude | 3000m |
| FUNCTIONAL CONFIGURATION | |

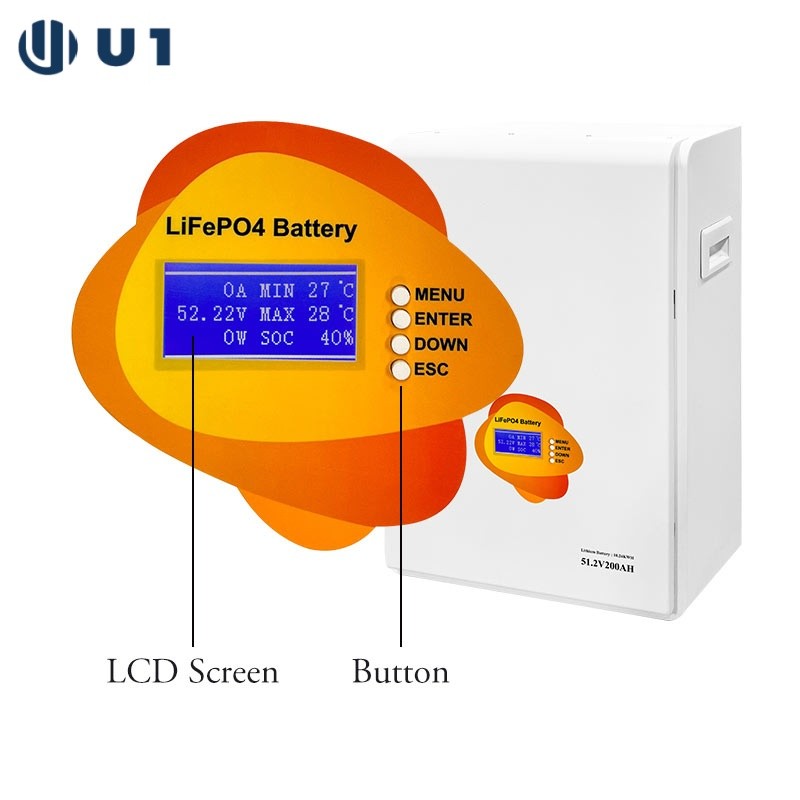

| LED Panel (Light Emitting Diode) | YES |

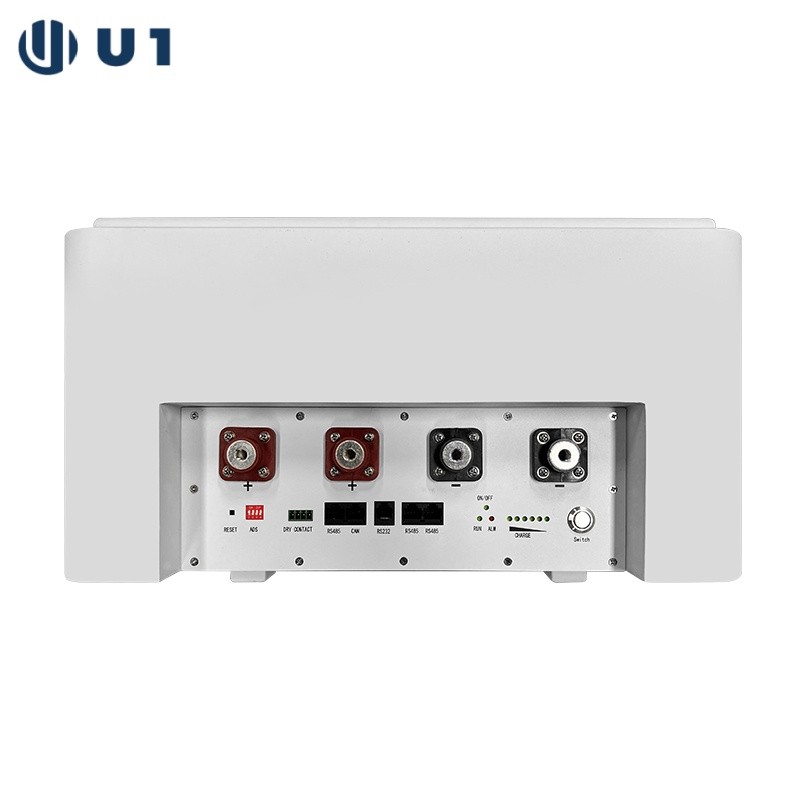

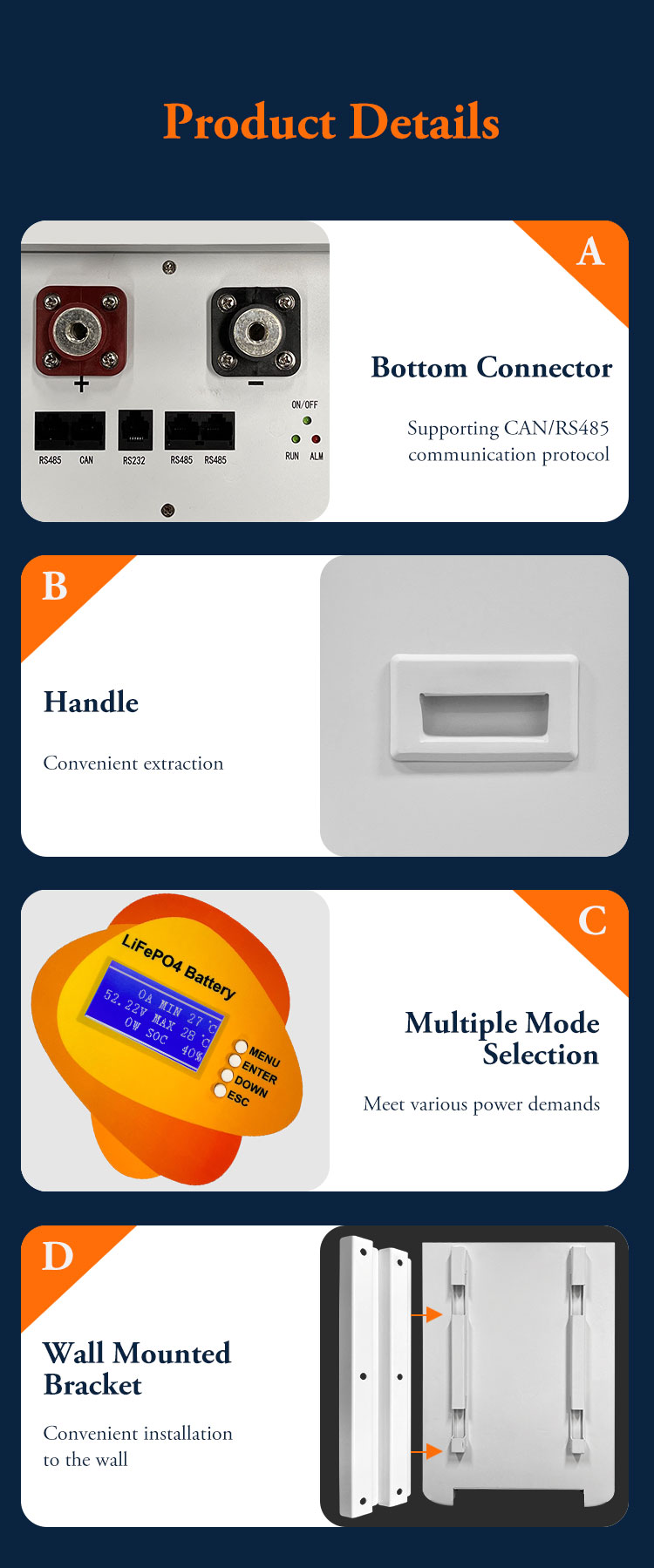

| Communication | RS485,CAN,RS232 |
| IP Rating | IP21 |

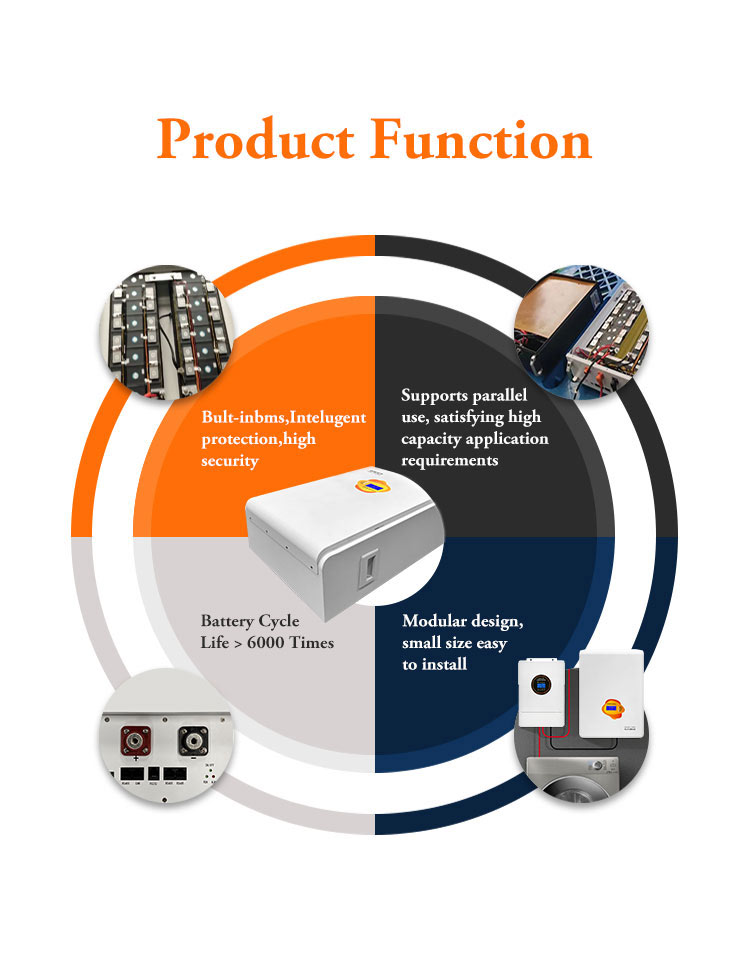

| Parallel Capability | Up to 6 units |
| LED Power Display | Traffic Light Display |
| BMS Control | Control Battery Performance |
| Package Size | 725*520*310mm (Carton);735*530*328mm (UN Wooden) |
| CERTIFICATION | |
| Safety | IEC62109-1, IEC62109-2,UL1741 |
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B |
| RoHS | YES |
