Cell Type: LFP280Ah PACK: 46.592kWh/1P52S Battery System: 232.96kWh/1P260S Voltage Range: 728~936Vdc PACK Ingress Rating: IP65 Rated Power: 100kW Max. Power: 110kW THDi; <3% DC Ratio: <0.5%lp Nominal Voltage: 400Vac/3P+N+PE Nominal Frequency: 50/60Hz System E fficiency : ≥90% Charge/Discharge Rate: 0.5P DoD : 95% SOC Accuracy: <3% Cycle Life: ≥8,000 times Switching Time: <100ms Connectivity: Ethernet /RS485 Ingress Rating: IP55 Cooling: Active liquid cooling Operating Tempera

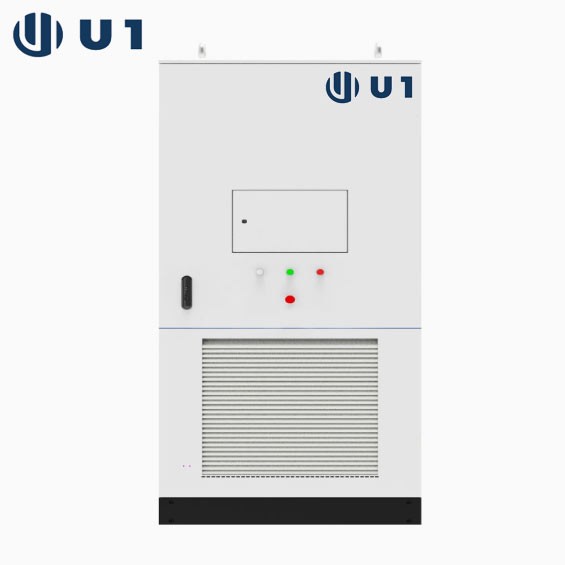

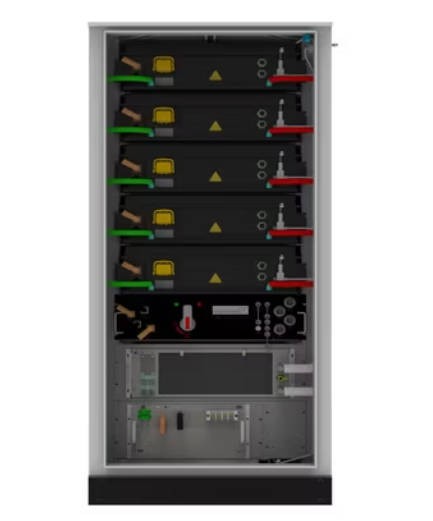

U1 233KWH commercial & industrial energy storage system adopts adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
All-in-one design for easy integration

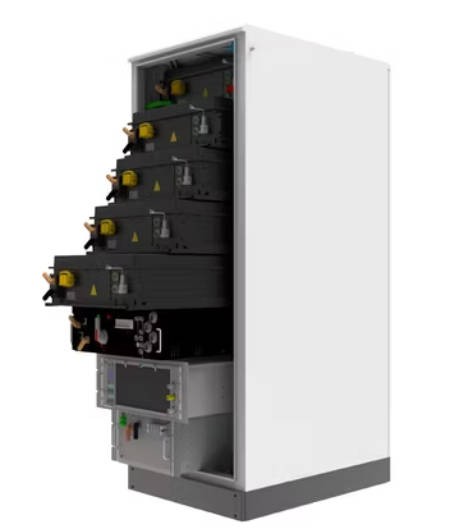

Modular design for flexible expansion
Capacity of up to 233kWh and power up to 100kW
Black start capability for independent power restoration
Efficient energy storage for industrial & commercial applications
Reliable power supply during outages or emergencies
Cost-effective solution for solar panel battery storag
General
| System Efficiency | >90% |
| Charge/Discharge Rate | 0.5P |
| DoD | 95% |
| SOC Accuracy | <3% |
| Cycle Life | >8000times |
| Switching Time | <100ms |
| Connectivity | Ethernet/RS485 |
| Ingress Rating | IP55 |
| Cooling | -25ºC~55ºC |
AC Side
| Rated Power: 100kW |
| Max. Power: 110kW |
| THDi: <3% |
| DC Ratio: <0.5%Ip |
| Nominal Voltage: 400Vac/3P+N+PE |
| Nominal Frequency: 50/60 Hz |
DC Side
| Cell Type: LFP280Ah |

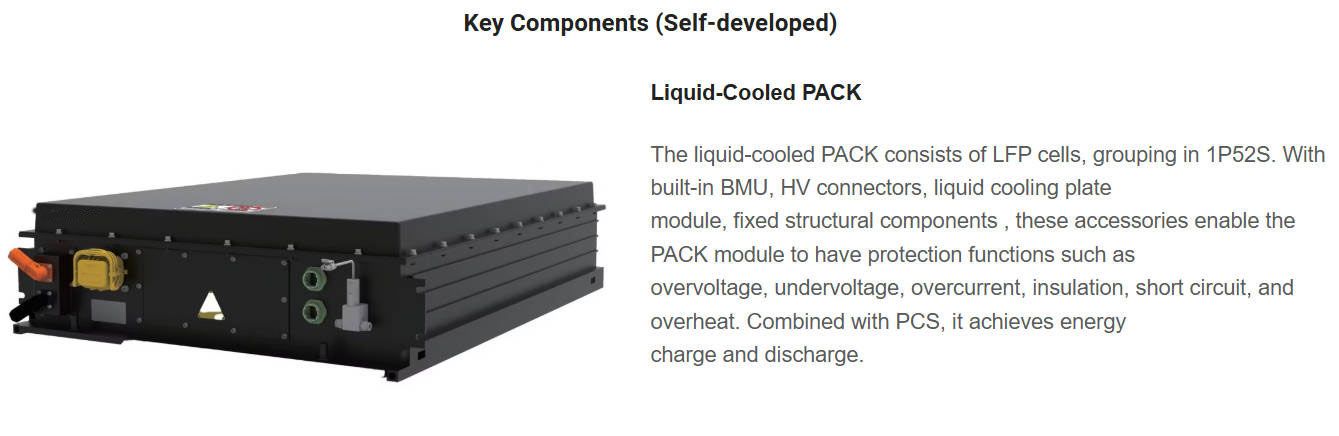

| PACK: 46.592kWh/1P52S |
| Battery System: 233.96kWh/1P260S |
| Voltage Range: 728~936Vdc |
| PACK Ingress Rating: IP65 |
Q: Are you trading company or manufacturer ?

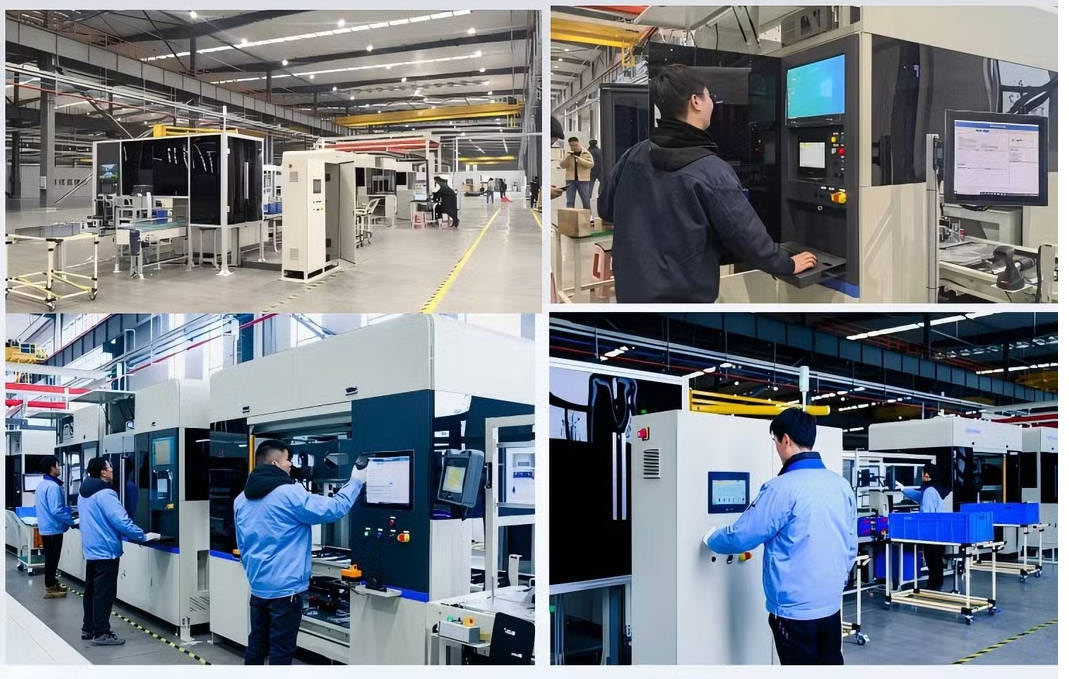

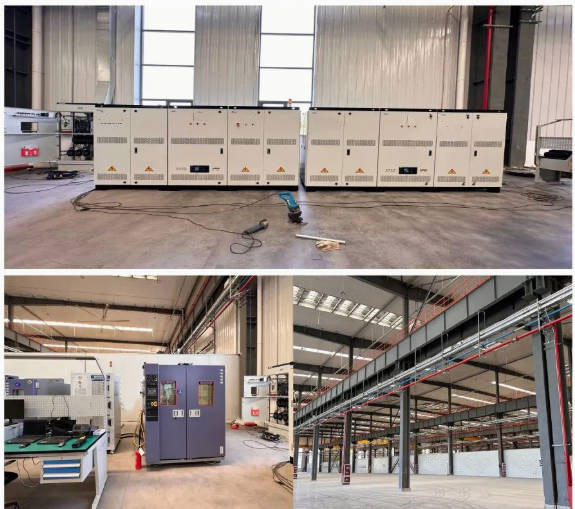

A: We are factory in China
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 1 month for the items were in stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
Q: What is your advantages?

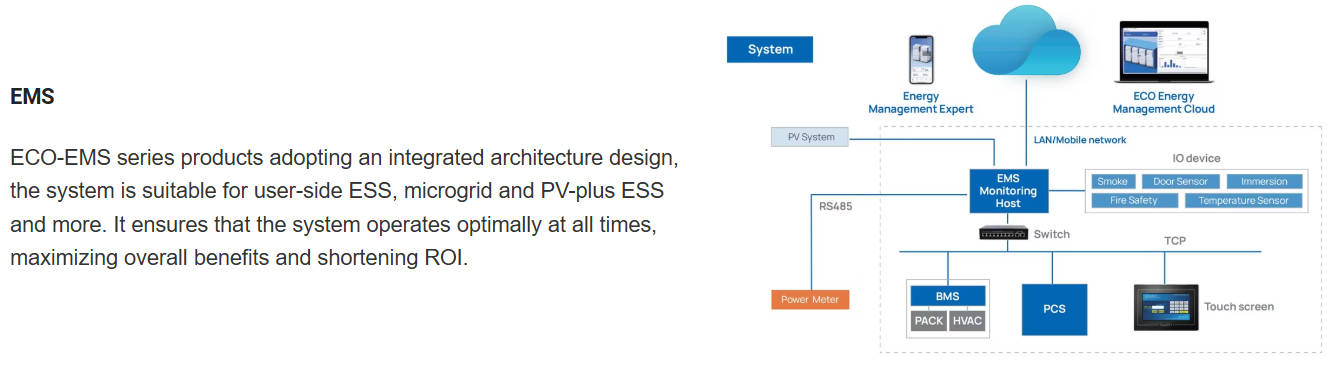

A:Firstly, our system conversion rate actual operation more than 87%. Besides, our self-developed EMS, which can be customised and developed according to the energy management strategy required by the customer; Finally, we use modular design, good expandability, with the customer's needs, can be quickly connected to the machine
