Nominal Capacity: 215kwh Cycle Life: 8000 Cycles Cooling Method: Forced Air Cooling Charge/Discharge Switching Time: <100ms Cooling Method: Forced Air Cooling Operating Temperature: -25~55ºC Relative Humidity: 0-95%RH, non-condensing Noise: <75dB Altitude: ≤2,000m (derating for usage above 2,000m) Fire Suppression System: Aerosol + Active Warning Dimensions (Width*Depth*Height): 1,250*1,300*2,350 (mm) Weight: 2,500kg
| Model No. | ECO-ESS-100kW/215kWh-W-CH |
| Nominal Capacity | 215kwh |
| Cycle Life | 8000 Cycles |
| Cooling Method | Forced Air Cooling |
| Charge/Discharge Switching Time | <100ms |
| DC Battery Parameters | |
| Battery Cell Type | LFP 280Ah |

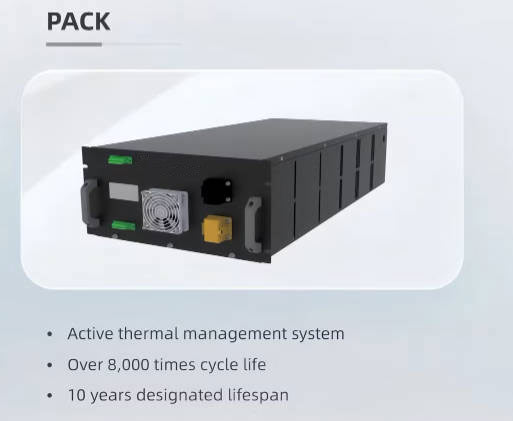

| Battery Pack Configuration | 17.92kWh/1P20S |
| Battery System Configuration | 215kWh/1P240S |
| Battery Voltage Range | 600~876V DC |
| System Rated Voltage | 768V DC |

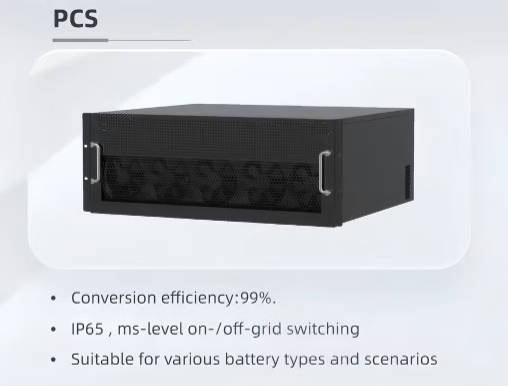

| AC Side Parameters | |
| AC Rated Power | 100kW |
| AC Maximum Power | 110kW (continuous for 1min) |
| AC Current Distortion Rate | <3% |
| DC Component | <0.5%Ipn |
| Grid Rated Voltage | 400V AC |
| Adjustable Power Factor Range | -1~1 |
| Rated Grid Frequency | 50Hz |
| System Parameters | |
| Energy Conversion Efficiency | ≥90% |
| Charge/Discharge Rate | ≤0.5P |
| Discharge Depth | 95%DOD |
| Number of Cycles | ≥8,000 times |
| Charge/Discharge Switching Time | <100ms |
| Communication Interface | Ethernet /RS485 |
| Protection Level | IP55 |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | -25~55ºC |
| Relative Humidity | 0-95%RH, non-condensing |
| Noise | <75dB |
| Altitude | ≤2,000m (derating for usage above 2,000m) |
| Fire Suppression System | Aerosol + Active Warning |
| Dimensions (Width*Depth*Height) | 1,250*1,300*2,350 (mm) |
| Weight | 2,500kg |

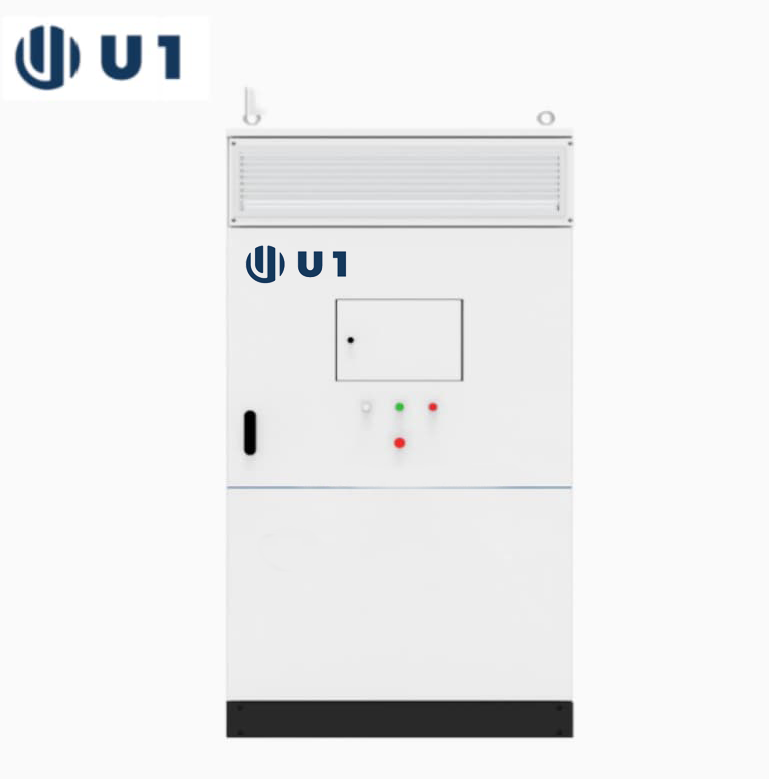

U1 215KWH commercial & industrial energy storage system adopts adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

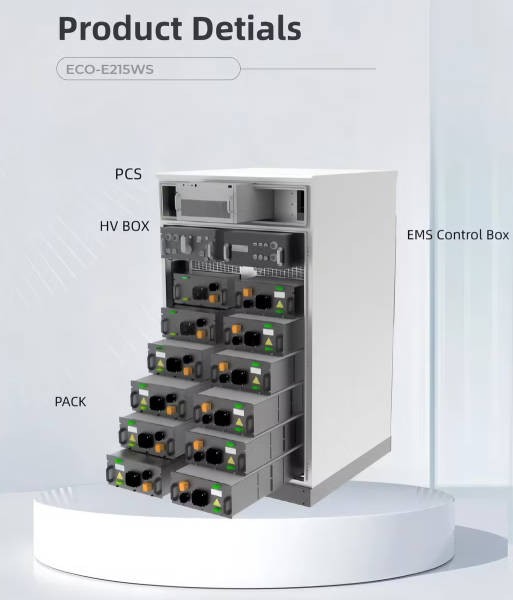

All-in-one design for easy integration
Modular design for flexible expansion
Capacity of up to 215kWh and power up to 100kW
Black start capability for independent power restoration
Efficient energy storage for industrial & commercial applications
Reliable power supply during outages or emergencies
Cost-effective solution for solar panel battery storage
Q: Are you trading company or manufacturer ?

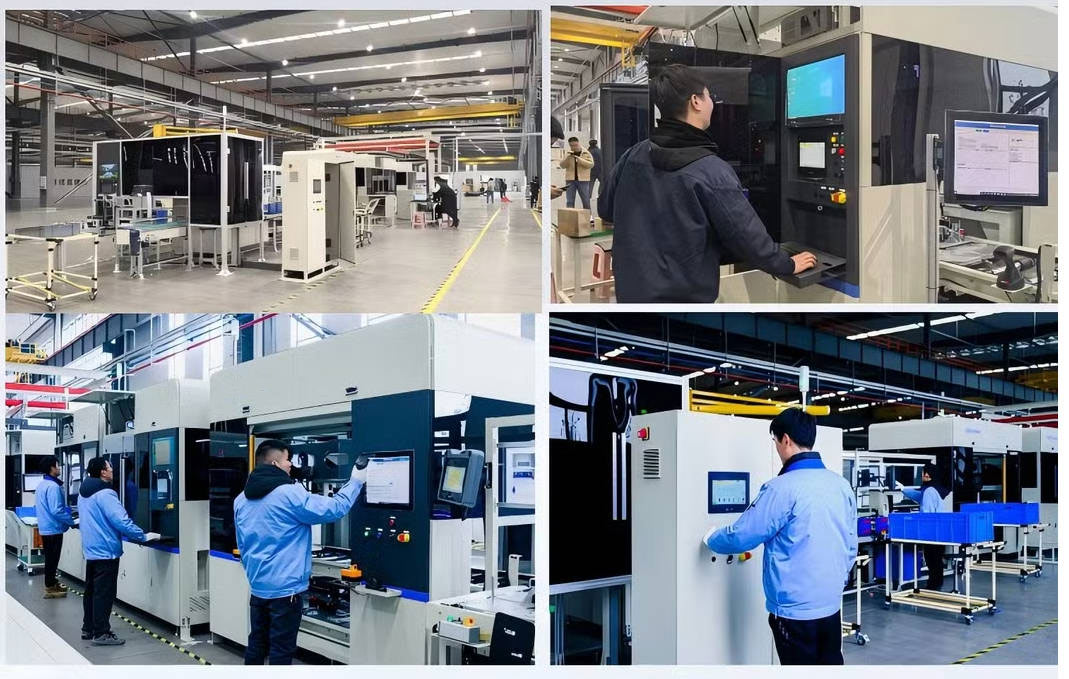

A: We are factory located in China.
